How to Make Porch Privacy Panels

This 'How to Make Porch Privacy Panels' guide will show you how easy it is to make panels to not only enhance the look of your porch but also give you privacy or to hide unsightly views.

Advertisements



Advertisements






Additional privacy and ambiance with these privacy panels

With a little ingenuity and vinyl lattice panels, we created additional ambiance and privacy on our back porch.


back porch without privacy panels
Before: Stepping back, here's how our porch looked before the privacy panels

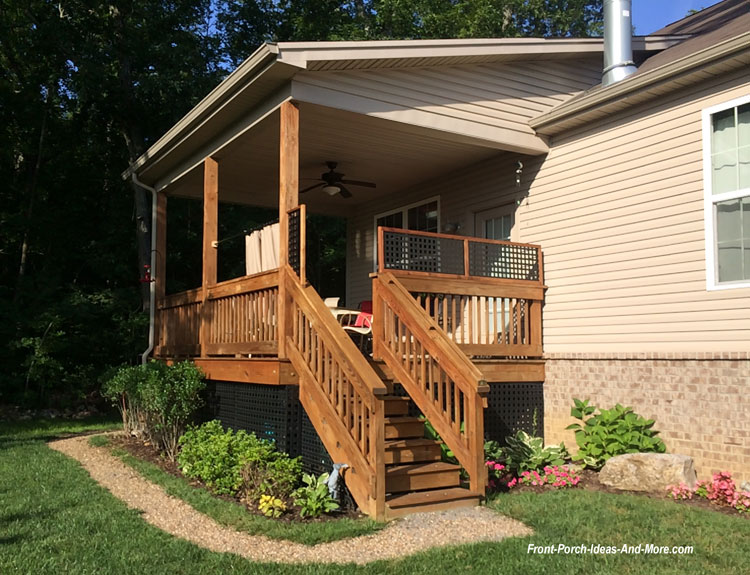

back porch with privacy panels
After: Back porch with decorative vinyl lattice privacy panels
The privacy panels provide a visual filter and we gain a sense of privacy without giving up our overall view. Instead of using typical treated lattice or thin vinyl lattice from home supply stores, we opted for custom vinyl lattice from Acurio Latticeworks.

At 1/4 thick, the lattice comes in a variety of styles and can usually be custom made to your specifications and design. It is also super easy to cut. We opted for a square pattern to match our porch skirting underneath the porch.

We ordered these panels through Home Depot; however, you can also purchase larger sized panels directly from Acurio Latticeworks (contact information below).

Here's a general guide as to how I made the panel for our back porch which you can use to make your own. Your project will probably have different dimension requirements so you will have to modify our guide to fit your specific needs.


How to Make Porch Privacy Panels - Materials and Tools

Vinyl Lattice Panels

parts to make privacy panel
Cedar and vinyl lattice for privacy panel


  • Two panels (32" x 48" each).
  • Cedar (can substitute treated lumber). I purchased two 8 foot x 6 inch x 1 1/4 inch cedar boards for this project.
  • Table saw
  • Chop saw
  • Measuring tape
  • Pencil
  • Exterior wood glue
  • Clamps


Advertisements






Advertisements




How to Porch Privacy Panels - Construction

Cut List

  • Cut two vinyl lattice panels to 45 7/8 x 17 3/16's each
  • Rip cedar boards to 1 5/8 x 1 3/4 inches
  • Cut cedar into two rails and three stiles Two at 94 1/16 inches;Two at 19 7/8 inches One at 16 13/16 inches (center stile)

Cut Dados and Rabbets

stiles and rails with dadoes and rabbet cuts
Dadoes and rabbet cuts on boards


  • Cut a 1/4" wide by 3/8 inches deep dado on each rail and end stiles
  • Cut two 1/4" wide by 3/8 inches deep dado on center stile

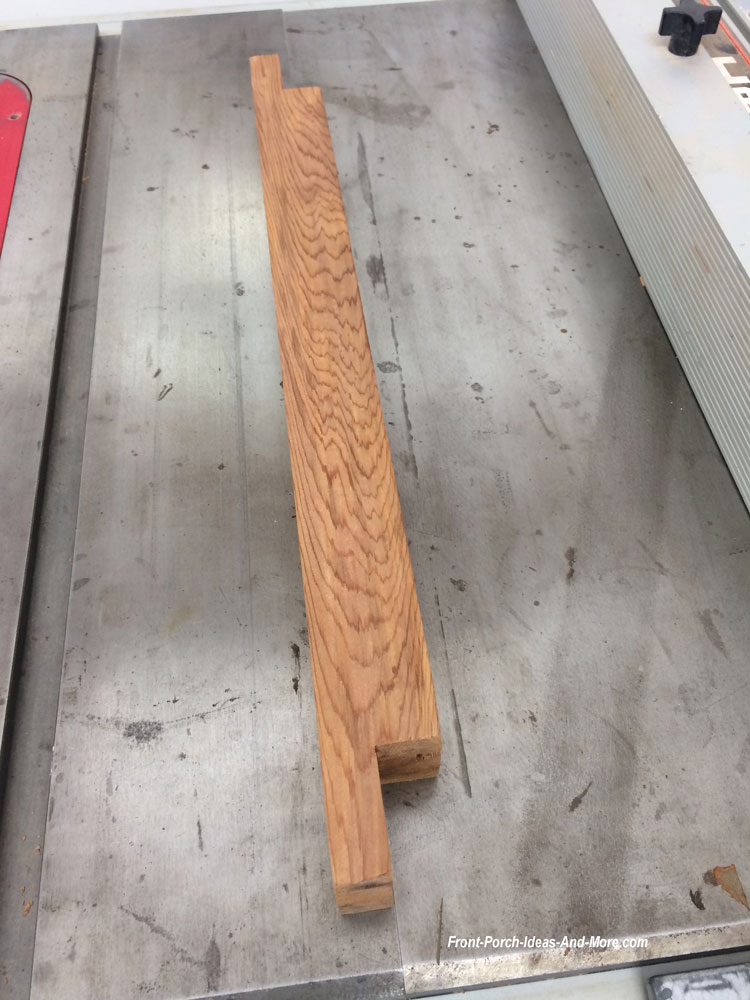

  • Note: You can center the dado or offset depending on your preference. rabbet joint on wood
  • Cut 1 5/8 x 1 inch rabbet on each end of the end stiles.
  • Cut a 1 5/8 x 5/8 inch dado centered on both top and bottom rails (for center stile)



Privacy Panel Assembly

After all parts have been cut dry fit the panel and make any necessary adjustments.

Glue and clamp the panel together. I pre-drilled pilot holes and inserted one deck screw into each frame joint.

I stained the panel using natural stain.

Position on porch and secure with deck screws.

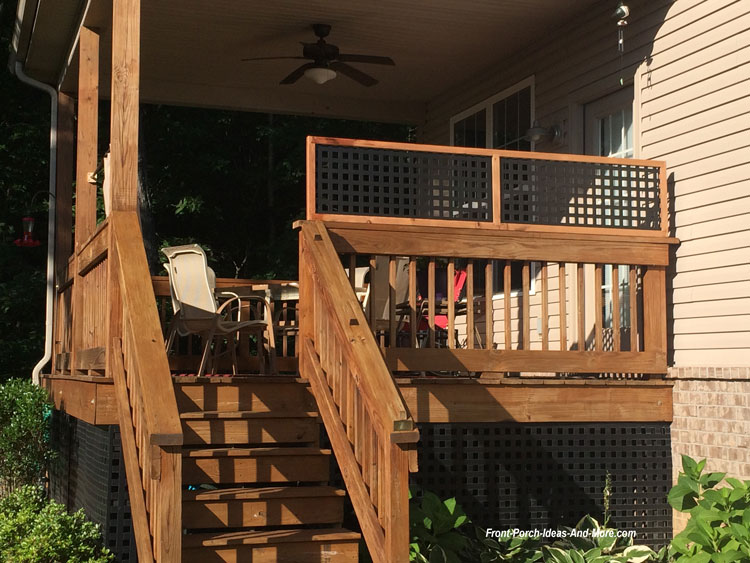

privacy panel in place on back porch
Privacy panel attached to top rail - note the matching skirting



vinyl lattice privacy panel on back porch
The privacy panel adds ambiance to our back porch



We Needed One More Panel

Because we wanted a bit more privacy on the back side of our porch, we needed to add an additional panel. We made it the same way but cut the vinyl panel at an angle since we were installing it on our stair rail.

To do so, we placed the panel in position against the top rail so we could mark the angle to make a perfect fit.

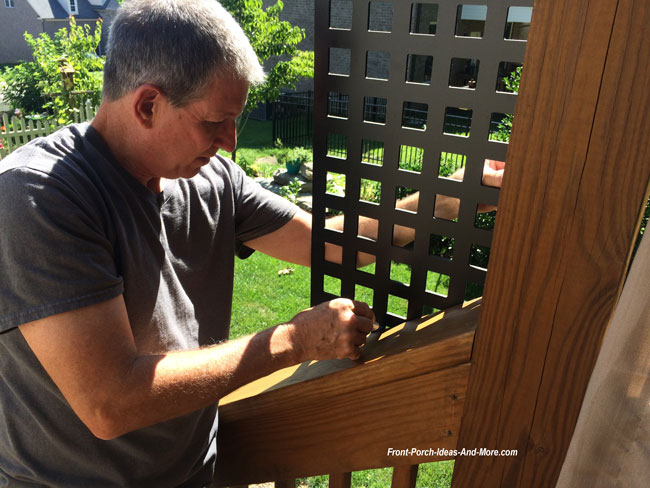

marking angle on privacy panel
Marking vinyl lattice to fit angle of railing



vinyl lattice cut to fit angle of railing on porch
Vinyl lattice cut to fit angle
We cut and assembled the parts in the same manner as above.


parts for the side privacy panel
Privacy panel parts
This panel provides just the right amount of privacy we were wanting.


small privacy panel on back porch
Aesthetically pleasing privacy panel



privacy panels on back porch
Both privacy panels in place



We Enjoy Working with and Using Custom Vinyl Lattice

Mary and I really like using vinyl lattice from Acurio Latticeworks. We've used it as porch and deck skirting, privacy panels, and other projects as well.


acurio latticeworks privacy panels on back porch
Acurio Latticeworks privacy panel with palm tree design
